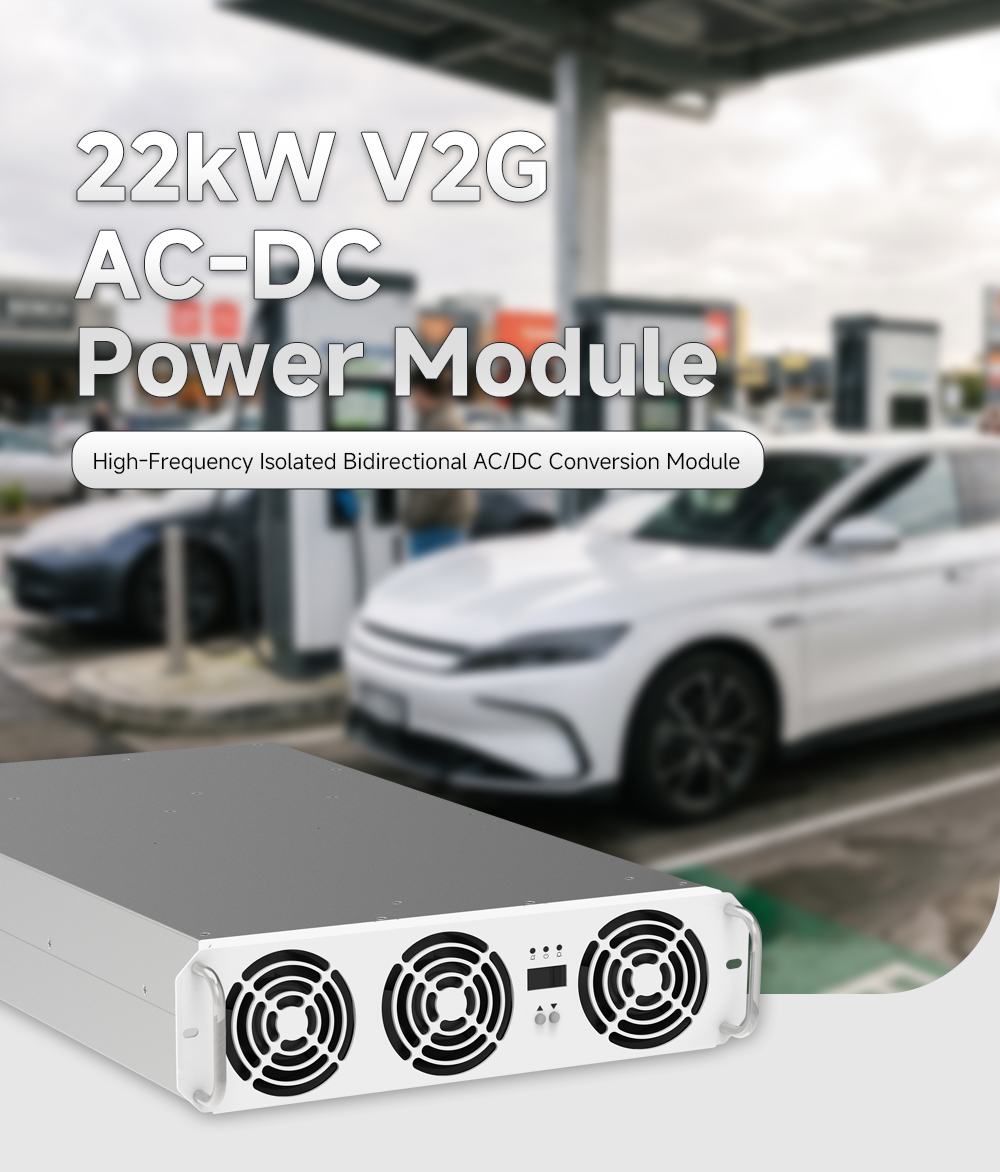

22kW V2G Charging Module | Bidirectional AC/DC Power Module
XEV22KHGUS-FAC
The 22kW V2G Charging Module is a high-efficiency bidirectional AC/DC power module designed for V2G charging stations and energy storage systems. Featuring up to 96% efficiency, dual DSP digital control, wide voltage range, and bidirectional power conversion, it enables reliable energy transfer between electric vehicles and the grid while supporting flexible charging and discharging applications.
Quantity:
22kW V2G Charging Module
Product Description：
The22kW V2G Charging Module is a high-performance bidirectional AC/DC power module designed for V2G charging stations, energy storage systems, and smart grid applications. With up to 96% efficiency, dual DSP digital control, and wide voltage compatibility, it enables stable charging and discharging between electric vehicles and the power grid. Supporting rectifier, grid-connected, and off-grid operating modes, the module provides reliable, flexible, and intelligent energy management for next-generation EV charging infrastructure.
Key Features：
- Up to 95% Efficiency – Reduces energy loss and operating costs.
- Wide Output Voltage (200–750VDC) – Compatible with various EV battery systems.
- DSP Digital Control – Ensures stable, accurate, and reliable charging.
- Active PFC Technology – Power factor ≥0.99 with low harmonic distortion.
- Hot-Swappable Design – Easy maintenance with minimal downtime.
- Parallel Expansion – Supports up to 60 modules for scalable charging systems.
- High Power Density – Compact design saves installation space.
- CAN Communication – Easy integration with smart EV charging systems
