40kW SiC EV Charging Module | High-Efficiency DC Fast Charging Power Module
XSC40KFGEU-FAC
The 40kW SiC EV Charging Module is a high-efficiency AC/DC power module designed for DC fast charging stations. Featuring up to 97% peak efficiency, a 150–1000V constant power range, intelligent digital control, and EMC Class B compliance, it delivers reliable, high-performance charging for commercial EV charging infrastructure.
Quantity:

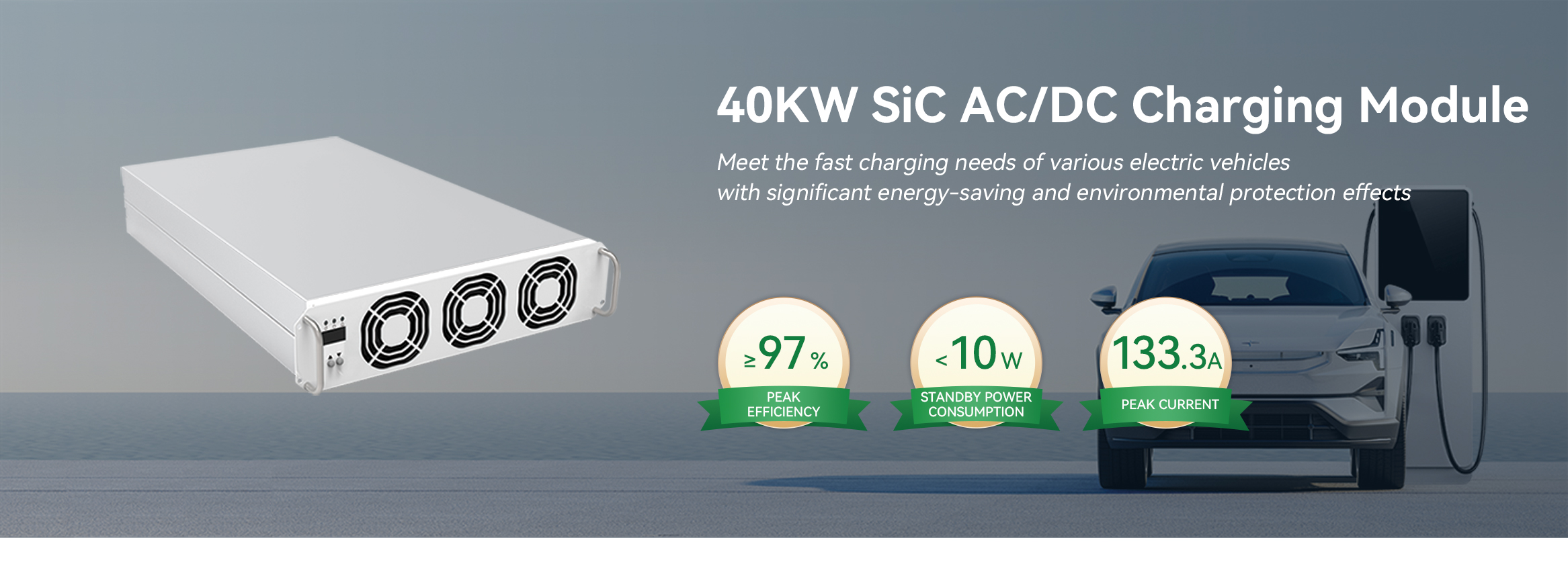

40kW SiC EV Charging Module
Product Description：
The40kW SiC EV Charging Module is a high-performance AC/DC power module engineered for next-generation DC fast charging stations. Built with advanced Silicon Carbide (SiC) technology, it delivers up to 97% peak efficiency, a 150–1000V wide constant power range, and intelligent digital control. Its compact design, high power density, and reliable performance make it an ideal solution for commercial EV charging infrastructure.
Key Features：
- SiC High Efficiency
Up to 97% peak efficiency reduces energy loss and improves charging performance.

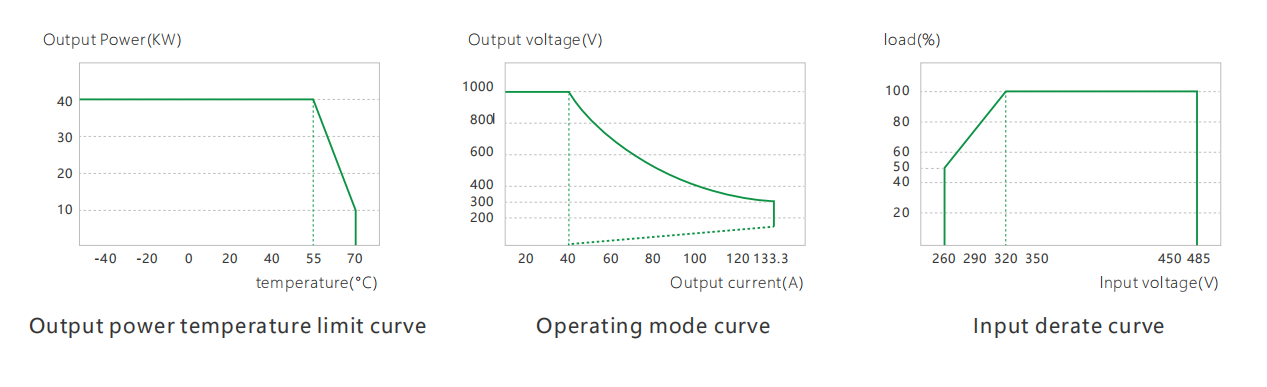

- Wide Constant Power Range
Supports150–1000V constant power output for excellent compatibility with various EV battery platforms.
- High Power Density
Compact design with high output power, helping reduce charger size and improve system integration.
- Intelligent Digital Control
Dual DSP control enables precise voltage and current regulation for stable charging.
- EMC Class B Compliance
MeetsEMC/EMI Class B requirements for improved electromagnetic compatibility.
- Reliable Protection
Built-in protection for overvoltage, short circuit, overtemperature, and intelligent fault management ensures safe operation.
