1500V Power Module

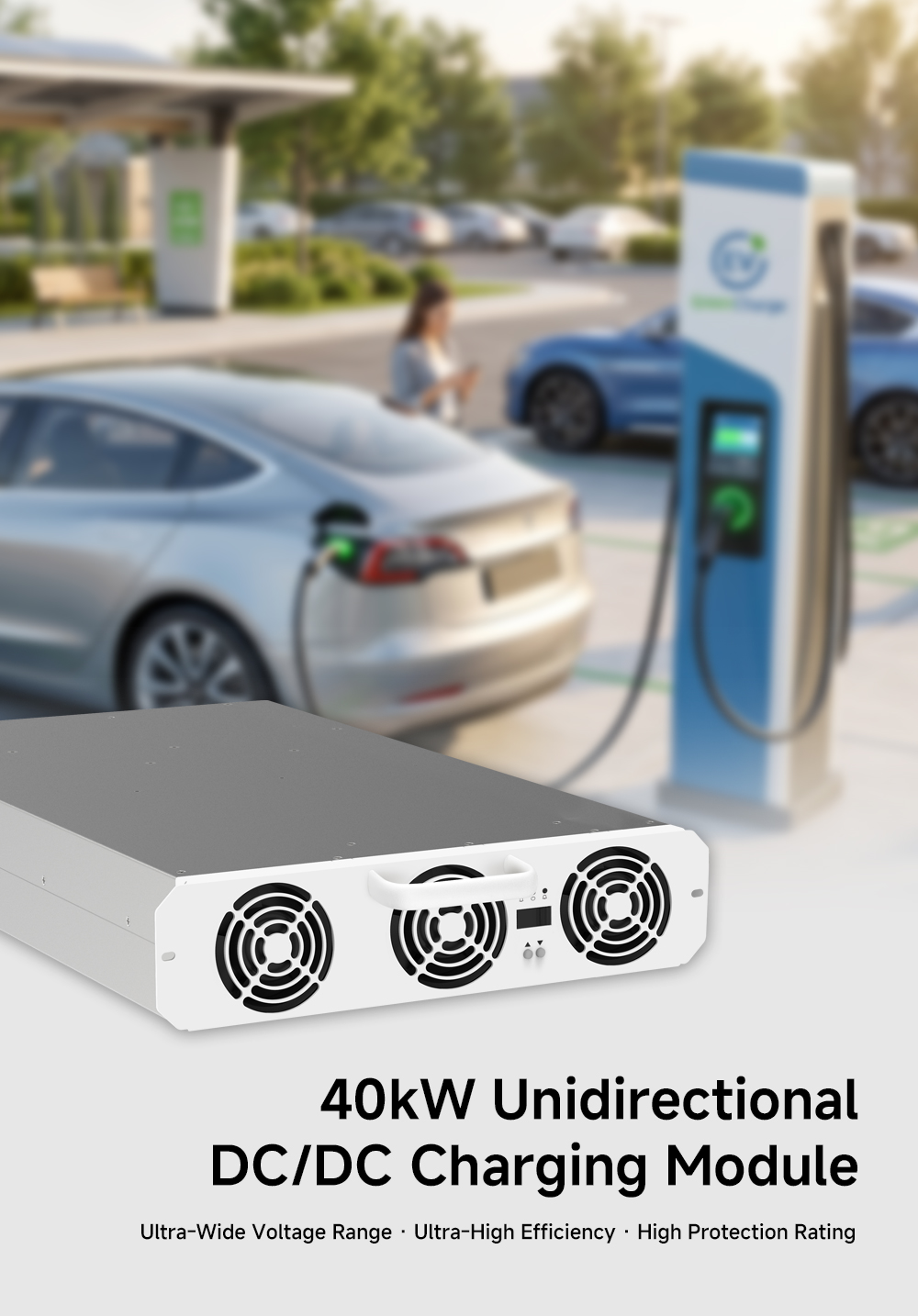

40kW 1500V Unidirectional DC/DC Power Module

XED40MHG-FAC
A 40kW isolated unidirectional DC/DC power module with 200–1500V input and output, up to 98.5% peak efficiency and 100A output, designed for EV charging, PV, ESS and high-voltage DC power applications.
Quantity:
Contact Now
add to cart

40kW 1500V Unidirectional DC/DC Power Module

Product Description：

The XED40MHG-FAC is a high-frequency isolated unidirectional DC/DC converter module, featuring
core advantages such as an ultra-wide voltage range, ultra-high full-load operating temperature, and
ultra-high efficiency, along with high protection and high power density as its main characteristics. This
product is widely used in ultra-high-voltage DC input/output applications, including electric vehicle
charging, photovoltaic power generation systems, energy storage systems, urban rail transit, and
industrial equipment.

Key Features：

  • 40kW High Power Output — Delivers up to 40kW rated power for high-power DC charging and energy conversion applications.
  • Wide 200–1500V Voltage Range — Supports a wide DC input and output voltage range from 200V to 1500V for flexible system integration.
  • Up to 98.5% Peak Efficiency — High conversion efficiency helps reduce power losses and improve overall system performance.
  • Up to 100A Output Current — Provides up to 100A output current to support high-power DC charging and demanding power applications.
  • Modular & Scalable Design — Supports automatic current sharing and parallel operation of up to 60 modules for flexible power expansion.
  • Intelligent CAN Communication — Enables CAN bus communication for system monitoring, control and coordinated operation within charging equipment.
