Thermal Management in EV Charging Modules: Maintaining Peak Performance in Extreme Climates
Published: May 19, 2026 Estimated Read Time: 11 minutes
The Problem Hiding Inside Every Charging Station
When EV drivers pull up to a charging station and find it offline, heat is often the reason — even if it's never listed as such on the fault log.
The 2025 ChargerHelp EV Charging Reliability Report, analyzing over 100,000 charging sessions across 2,400 stations, found that first-time charge success rates decline from 85% at new stations to below 70% by year three.[^1] Component failure ranked as the leading cause of station downtime — ahead of software issues, payment system failures, and connector problems. And at the component level, thermal stress is a principal driver of premature failure: cycling repeatedly between high operating temperatures and ambient conditions degrades capacitors, transistors, and magnetic components faster than almost any other mechanism.
For charging station operators, this degradation is invisible until it isn't. The module runs fine for 18 months. Then deratings become more frequent. Then protective shutdowns. Then a replacement.
Understanding what's happening inside the module — and how good thermal design prevents it — is the difference between infrastructure that performs for years and infrastructure that becomes a maintenance problem.Where Heat Comes From in a Charging Module

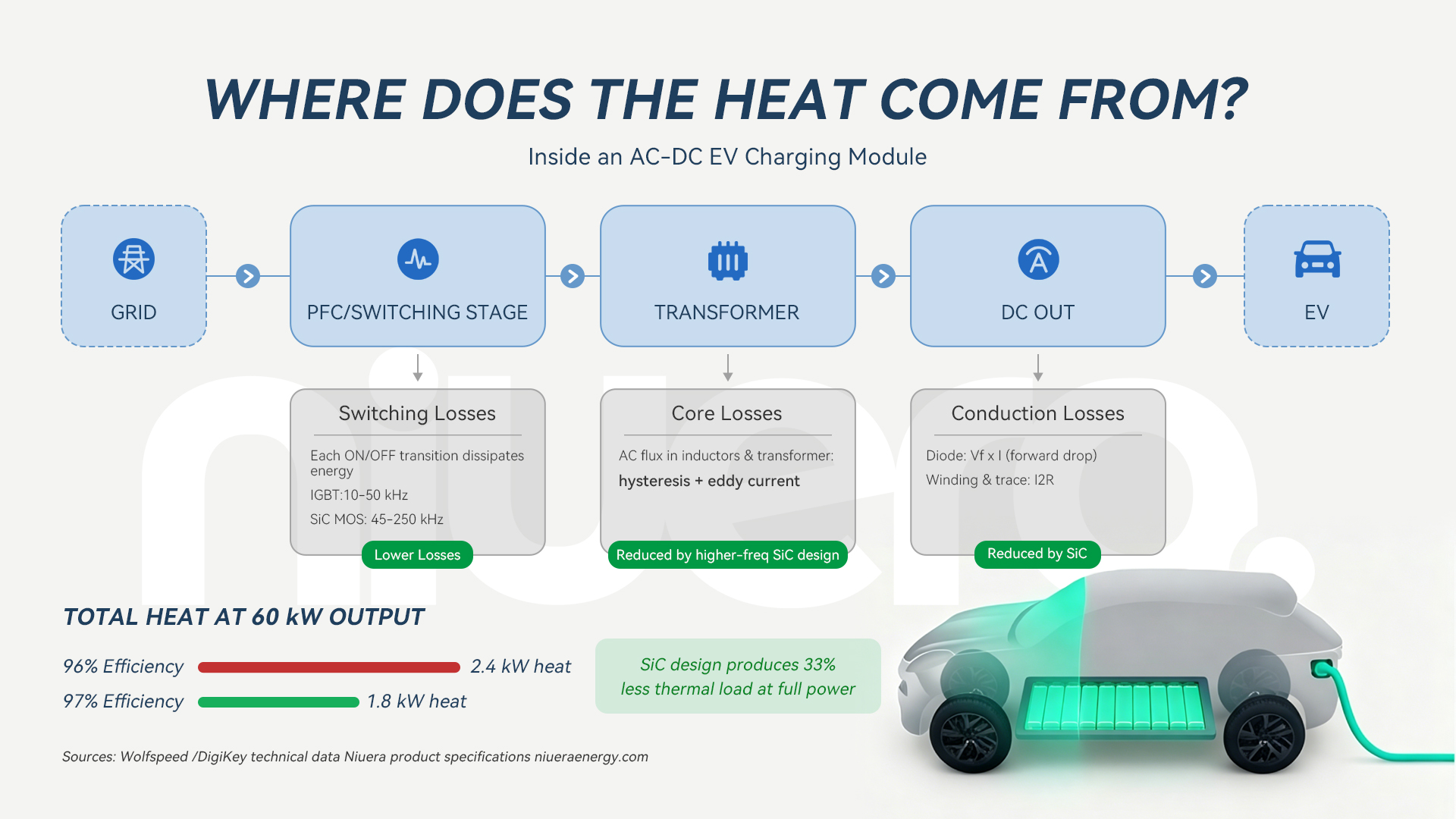

An EV charging module is an AC-DC power converter. Its job is to take three-phase grid power and convert it to the precise DC voltage and current a vehicle battery needs. No conversion is perfectly efficient; the energy that doesn't make it to the vehicle comes out as heat.
The primary heat sources inside a charging module are:
Switching losses in power semiconductors. Every time a transistor switches on or off — which in a modern module happens tens of thousands of times per second — energy is dissipated. At 30kW, switching losses can account for a substantial portion of total losses if the semiconductor technology isn't optimized.
Conduction losses. When current flows through a semiconductor or transformer winding, resistive losses generate heat proportional to current squared (I²R). At high current, these losses are significant.
Core losses in magnetic components. Inductors and transformers carry AC flux, and the hysteresis and eddy current losses in their cores generate heat — particularly at high frequencies.
Diode and rectifier losses. The forward voltage drop across diodes multiplied by current produces heat at every rectification stage.
The sum of these losses determines module efficiency. A module operating at 97% efficiency converts 3% of input power to heat. At 96% efficiency, that figure is 4%. The difference sounds small. In absolute terms at 60kW, it's the difference between 1.8kW and 2.4kW of continuous heat dissipation — a 33% increase in thermal load that the cooling system must handle.
At scale, across a charging station running hundreds of sessions per day, that thermal difference compounds into measurable effects on component temperatures, service life, and ultimately uptime.
Why Emerging Market Climates Make This Harder
Thermal management in EV charging modules is challenging under laboratory conditions. It becomes substantially harder in the real-world operating environments of Southeast Asia, the Middle East, and Africa — the markets where new charging infrastructure is growing fastest.
The physics is straightforward: every cooling system is designed to maintain components at a safe operating temperature relative to ambient. A module designed to keep critical components at 85°C above ambient can do so easily at 20°C ambient. At 40°C ambient — typical for an outdoor location in Ho Chi Minh City, Nairobi, or Riyadh — that same module must work much harder. At 50°C ambient in direct sun on a hot day, the margin shrinks further.

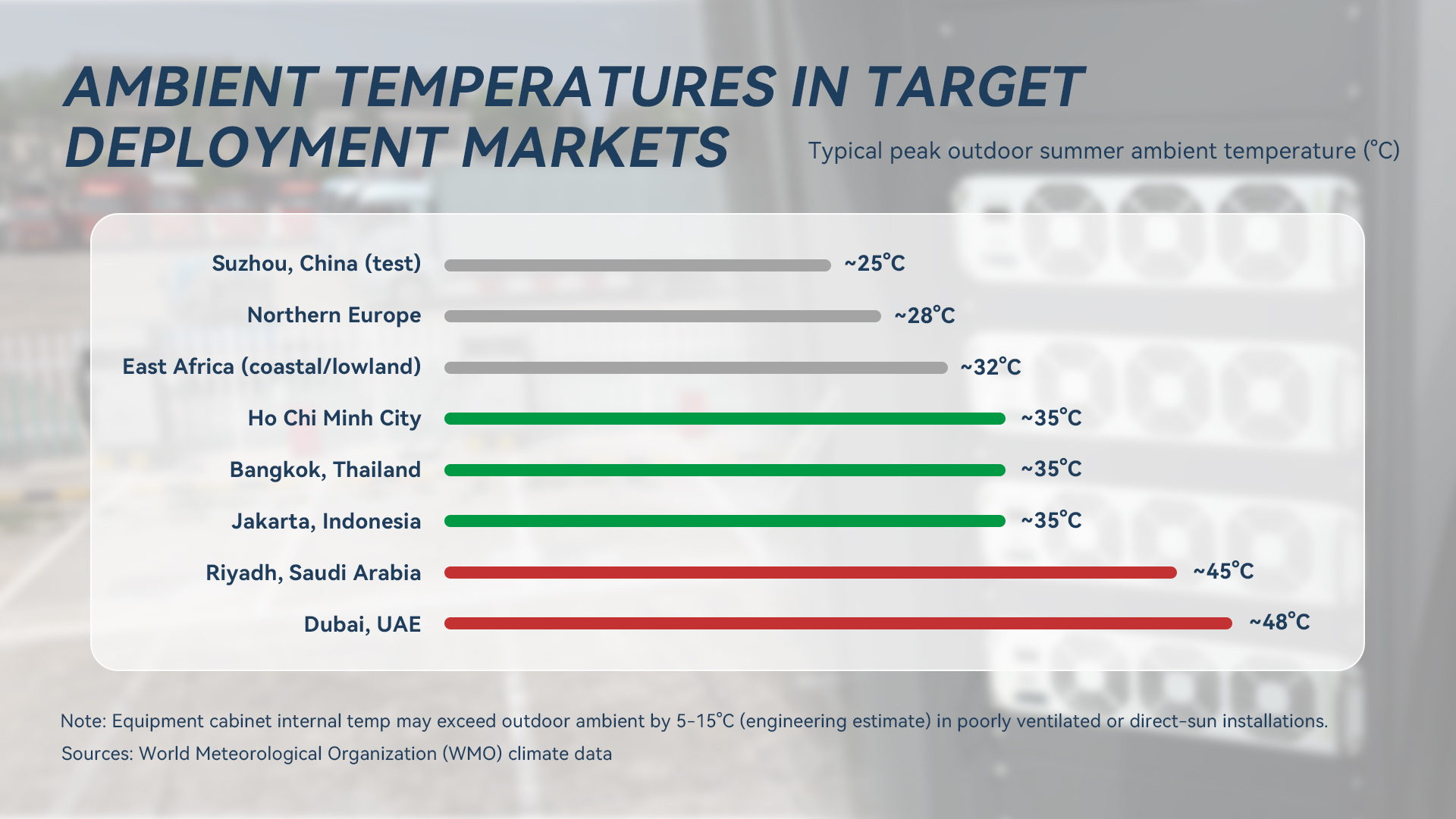

Consider the deployment contexts where Niuera's modules are operating:
Southeast Asia: Vietnam, Indonesia, and Thailand regularly see summer ambient temperatures of 32–40°C, combined with high humidity (80–95% relative humidity is common). High humidity doesn't generate heat, but it accelerates corrosion on exposed metal surfaces and degrades insulation resistance on electrical connections, which in turn increases resistive losses and heat generation over time.
East Africa: Kenya, Rwanda, and Tanzania experience dry heat that is, paradoxically, more benign for electronics than humid tropical heat — but construction site and logistics park deployments frequently involve dusty environments that can clog air cooling systems if the hardware isn't designed to handle it.
Middle East: Ambient temperatures in exposed outdoor locations in the Gulf can reach 45–50°C in summer months. This is the most demanding thermal environment for air-cooled charging modules and represents the design edge case that separates adequate thermal management from genuinely robust engineering.
The module that performs well in a Suzhou laboratory may not perform the same way after two years of continuous operation in a 35°C, 85% humidity environment. This is not a hypothetical concern — it's a documented pattern in the field data on charging infrastructure reliability.The SiC Advantage: Generating Less Heat to Begin With

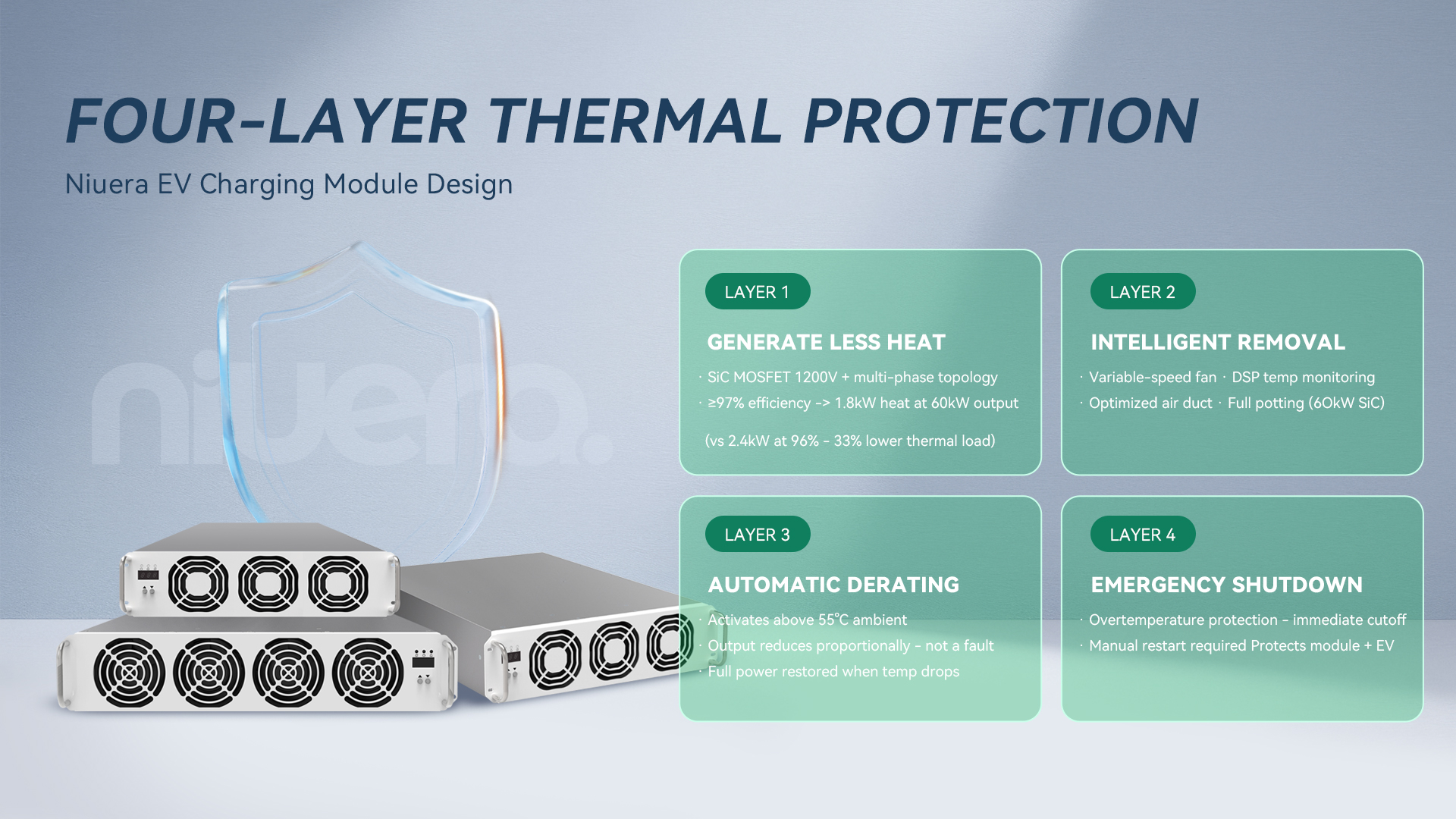

The most effective thermal management strategy is not removing heat more aggressively — it's generating less heat in the first place. This is where Silicon Carbide (SiC) semiconductor technology delivers its most important practical benefit.
Traditional EV charging modules use IGBT (Insulated Gate Bipolar Transistor) devices as the primary switching elements. IGBTs are mature, reliable technology, but they have inherent limitations: relatively high switching losses, limited switching frequency, and a maximum rated junction temperature of around 150°C, which constrains how hard they can be pushed before thermal protection activates.
Silicon Carbide MOSFETs operate on a fundamentally different material basis. SiC has a thermal conductivity approximately three times that of silicon, enabling heat to move away from junction more rapidly.[^2] More importantly, SiC's wide bandgap allows operation at much higher junction temperatures (rated to 175°C in many commercial device specifications — compared to around 150°C for most IGBT devices — providing substantially more thermal headroom before protection thresholds are reached.), providing substantially more thermal headroom before protection thresholds are reached. SiC devices also exhibit significantly lower switching losses at high frequencies — enabling the higher switching frequencies (45–250kHz for SiC, compared to far lower rates for standard IGBT topologies[^3]) that allow smaller, more efficient magnetic components and ultimately less heat generation across the full system.
In practical terms for a DC fast charging module: SiC-based designs can reach 97%+ efficiency — meaning only 3% of power handled is converted to heat — while silicon-based designs typically achieve 93–96% depending on topology and power level. At 60kW, this 1–4 percentage point difference means the SiC module generates 600W–1,800W less heat than a comparable silicon-based design. That's thermal load that doesn't need to be removed by cooling fans, doesn't stress components, and doesn't accumulate as temperature rise over time.
Niuera's 40kW SiC (XSC40KFGEU-FAC) and 60kW SiC (XSC60KFGCN / XEH60KFGUS / XSC60KFGEU-FAC) modules use 1200V SiC MOSFETs and SiC diodes combined with high-efficiency IGBTs, magnetic integration technology, and multi-phase interleaved parallel topology to achieve ≥97% peak efficiency. The 30kW non-SiC module (X-EH-30K-TX series) achieves ≥96% peak efficiency with IGBT-based design. Across the product line, generating less waste heat is the first layer of thermal management.
Intelligent Cooling: Managing the Heat That Remains
Even with SiC efficiency advantages, a 60kW module handling full load will generate over 1.8kW of heat continuously. This must be moved out of the module housing without allowing any component to exceed its rated temperature. The design of the cooling system — and how intelligently it operates — directly determines both thermal performance and service life.
Intelligent fan speed control is standard across Niuera's full module range. Rather than running cooling fans at fixed speed regardless of thermal load, the control system continuously monitors component temperatures and adjusts fan speed proportionally to actual heat generation. At partial load or in cool ambient conditions, fans run slowly — reducing noise, reducing fan motor wear, and reducing power consumed by the cooling system itself. Under full load in high-ambient conditions, fans ramp up to maintain safe component temperatures.
This adaptive approach matters because fan motors are among the highest-wear components in an air-cooled system. Fixed-speed fans operating at full speed regardless of load accumulate operating hours far more rapidly than variable-speed fans that only push hard when genuinely needed. The 60kW SiC module uses an updated fan noise reduction design, keeping operating noise below 65dB at 1 metre — relevant for station deployments in noise-sensitive locations such as residential areas, underground facilities, or indoor commercial spaces.
Optimized air duct design in the 60kW SiC module is explicitly cited as a factor in its ≥5-year rated service life. The airflow path through the module determines how uniformly heat is extracted from all components — a poorly designed duct can leave thermal hot spots even when total airflow is adequate, causing localised stress on specific components. Niuera's 60kW module design incorporates purpose-engineered airflow to eliminate hot spots under sustained full-load operation.The Derating Function: Protecting Performance Under Stress
No cooling system can maintain full performance indefinitely when ambient temperature exceeds design parameters. The industry standard response is thermal derating: automatically reducing output power when ambient temperature rises above a threshold, ensuring that component temperatures stay within safe bounds even when the environment is hotter than normal operating conditions.
Across Niuera's module range, derating activates above 55°C ambient temperature. Below this threshold, modules deliver their full rated power output. Above it, output is reduced proportionally to maintain component temperatures within specification.
In practical terms for a charging station operator:
In most Southeast Asian and East African deployment environments, where typical ambient temperatures range from 25°C to 40°C even in summer, the 55°C derating threshold is rarely reached. Modules at these locations operate at full rated power the vast majority of the time.
In Middle Eastern deployments, or in poorly ventilated enclosures in tropical climates, ambient temperatures inside the charging station cabinet can approach or exceed 55°C during the hottest periods of the day. At these points, the derating function activates — reducing per-module output to maintain equipment within safe operating bounds. For station operators in these environments, this is an important design consideration: a station planned at full-load output based on nominal module ratings should include thermal analysis of actual cabinet temperatures in the specific installation environment.
The derating function is a protection mechanism, not a failure mode. A module that derates at 58°C ambient and then returns to full power as temperature drops is functioning exactly as designed. A module without derating that operates at full power at 60°C ambient is accumulating thermal stress that will manifest as premature component degradation.
The full operating temperature ranges for Niuera's modules:
- 30kW (X-EH-30K-TX): -40°C to +75°C operating; derating above 55°C
- 40kW SiC (XSC40KFGEU-FAC): -40°C to +75°C operating; derating above 55°C
- 60kW SiC (XSC60K series): -40°C to +70°C operating; derating above 55°C
The -40°C lower bound is equally important for deployments in Northern Europe, Canada, Central Asia, and high-altitude locations where sub-zero winter temperatures are common. A charging module that cannot start reliably at -20°C is not deployable in Oslo or Almaty.
Full Potting Technology: Sealing Out the Environment
Thermal management is not only about heat dissipation. It also involves protecting components from the environmental factors that accelerate thermal degradation: moisture, condensation, corrosive gases, and particulate contamination.
Niuera's 60kW SiC module uses full glue filling (potting) technology — encapsulating internal components in a thermally conductive compound that simultaneously conducts heat away from components and excludes moisture and contaminants from the internal environment. This approach, which industry peers including Navitas Semiconductor have independently validated for "high-humidity environments by preventing moisture ingression and enabling stable thermal performance",[^4] provides several practical advantages over standard conformal coating:
Mechanical support: Potted components are physically stabilized against vibration — relevant for charging stations installed in locations with vehicle traffic nearby or in transport and logistics environments.
Moisture exclusion: In high-humidity tropical environments, conformal coatings can have microscopic gaps that allow moisture ingress over time, particularly at connector interfaces and PCB edges. Potting eliminates this path entirely.
Thermal continuity: The potting compound in direct contact with components removes the air gaps that act as thermal insulators in non-potted designs, improving effective thermal conductivity.
The result, per Niuera's specification, is a service life of over five years for the 60kW SiC module under normal operating conditions — significantly above the industry average for products at this power density.
Overtemperature Protection: The Final Safety Layer
Even with intelligent cooling, efficient conversion, and robust materials, no design is immune to unexpected thermal events: blocked ventilation, cooling fan failure, sustained operation at conditions beyond design parameters. For these situations, independent overtemperature protection provides the last line of defense.
All Niuera charging modules include automatic overtemperature protection that activates when detected temperatures reach a preset threshold. When triggered, the module ceases output immediately — protecting both the module hardware and the connected vehicle battery from consequences of uncontrolled thermal events. Recovery requires intentional system restart, preventing the module from cycling back into a fault condition automatically without operator awareness.
This shutdown-on-fault behavior is not merely a product specification — it's relevant to the reliability data operators should understand. The ChargerHelp 2025 Reliability Report found that while station downtime has improved, new stations average an 85% first-time charge success rate, but performance drops to 69.9% by year three — a 15-point decline that standard uptime monitoring fails to capture. Much of this degradation is thermal in origin: components that have experienced repeated thermal stress cycle at elevated temperatures without triggering protection respond to load more unpredictably over time, producing intermittent failures that look like software or communication issues on the fault log.
A module that shuts down cleanly on overtemperature and logs the event preserves diagnostic information. A module that continues operating while thermally stressed produces no fault record — and degrades silently until it fails completely.

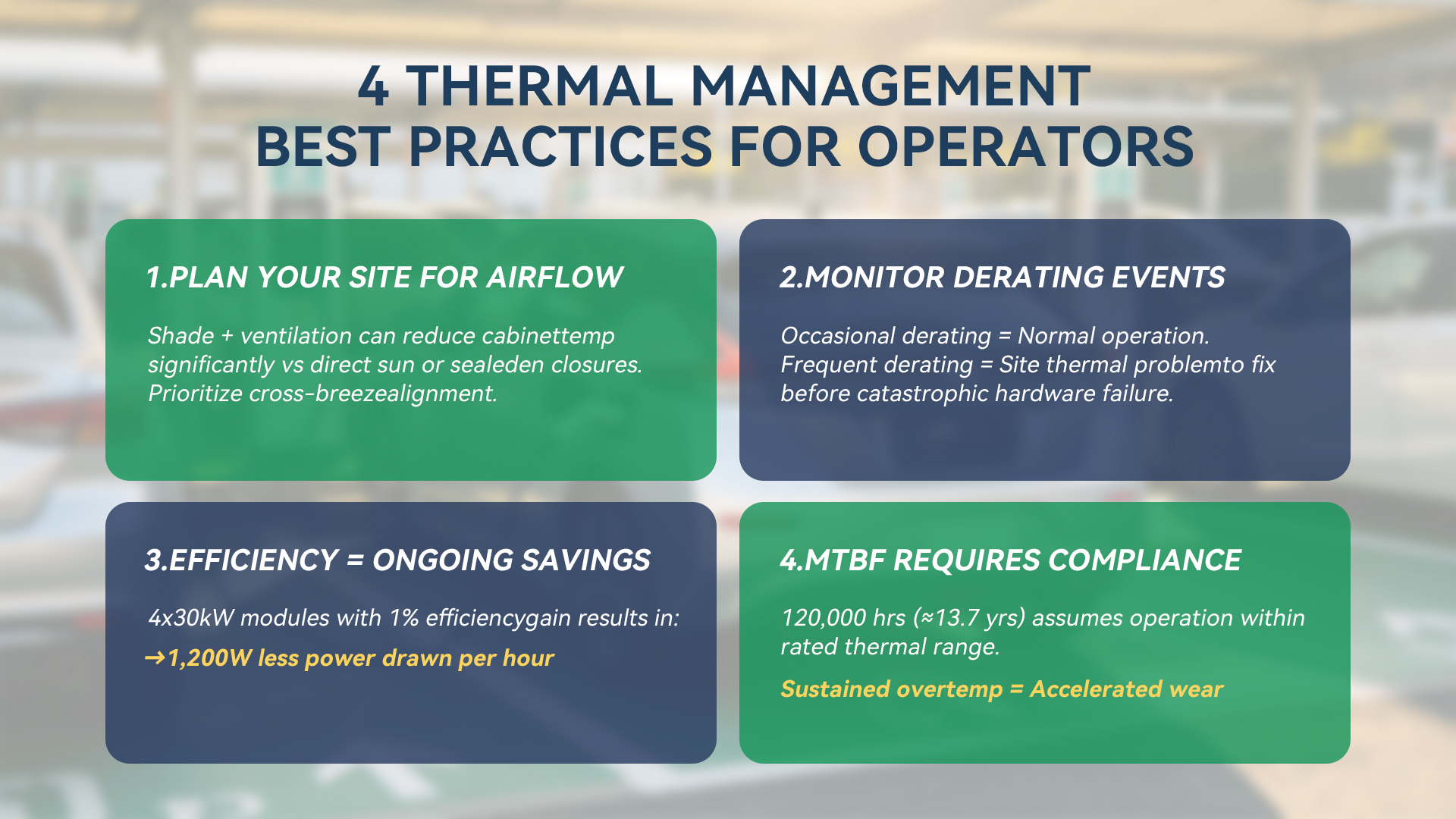

What This Means for Charging Station Operators
Thermal management specifications are often treated as background data — noted but not fully considered in station planning. For operators deploying infrastructure in warm climates, they deserve more direct attention.
Site selection and ventilation matter. A charging station cabinet installed in direct sun, with restricted airflow around it, will run significantly hotter internally than the same hardware in a shaded, ventilated location. For stations deployed at 30kW to 60kW per outlet in ambient temperatures above 35°C, thermal analysis of the specific installation environment before commissioning is worth the effort. This is not a niche concern — it's directly relevant to the vast majority of deployments across Southeast Asia, Africa, and the Middle East.
MTBF is a procurement criterion, not just a marketing number. The 60kW SiC module's specified MTBF of 120,000 hours — equivalent to approximately 13.7 years of continuous operation — is derived from established component reliability data at rated operating conditions. It is meaningful only when modules are operated within those conditions. Modules that regularly exceed thermal thresholds accumulate wear at rates well above MTBF calculations. Operators who select high-MTBF hardware but install it in thermally poorly managed enclosures are not getting the reliability benefit they paid for.
Monitoring overtemperature events is valuable diagnostics. A module that triggers its thermal derating function or overtemperature protection once during an unusually hot afternoon is behaving as designed. A module that triggers these protections routinely indicates a site thermal management problem that needs investigation before it becomes a hardware failure.
Efficiency pays back over time. The difference between 96% and 97% module efficiency at 30kW is 300W of additional heat generation — but it's also 300W of additional power purchased from the grid per module, per hour of full-load operation. At a charging station with four 30kW modules running at high utilization, 1,200W of efficiency improvement translates to meaningful electricity cost reduction over a multi-year operating period, in addition to the thermal benefits.

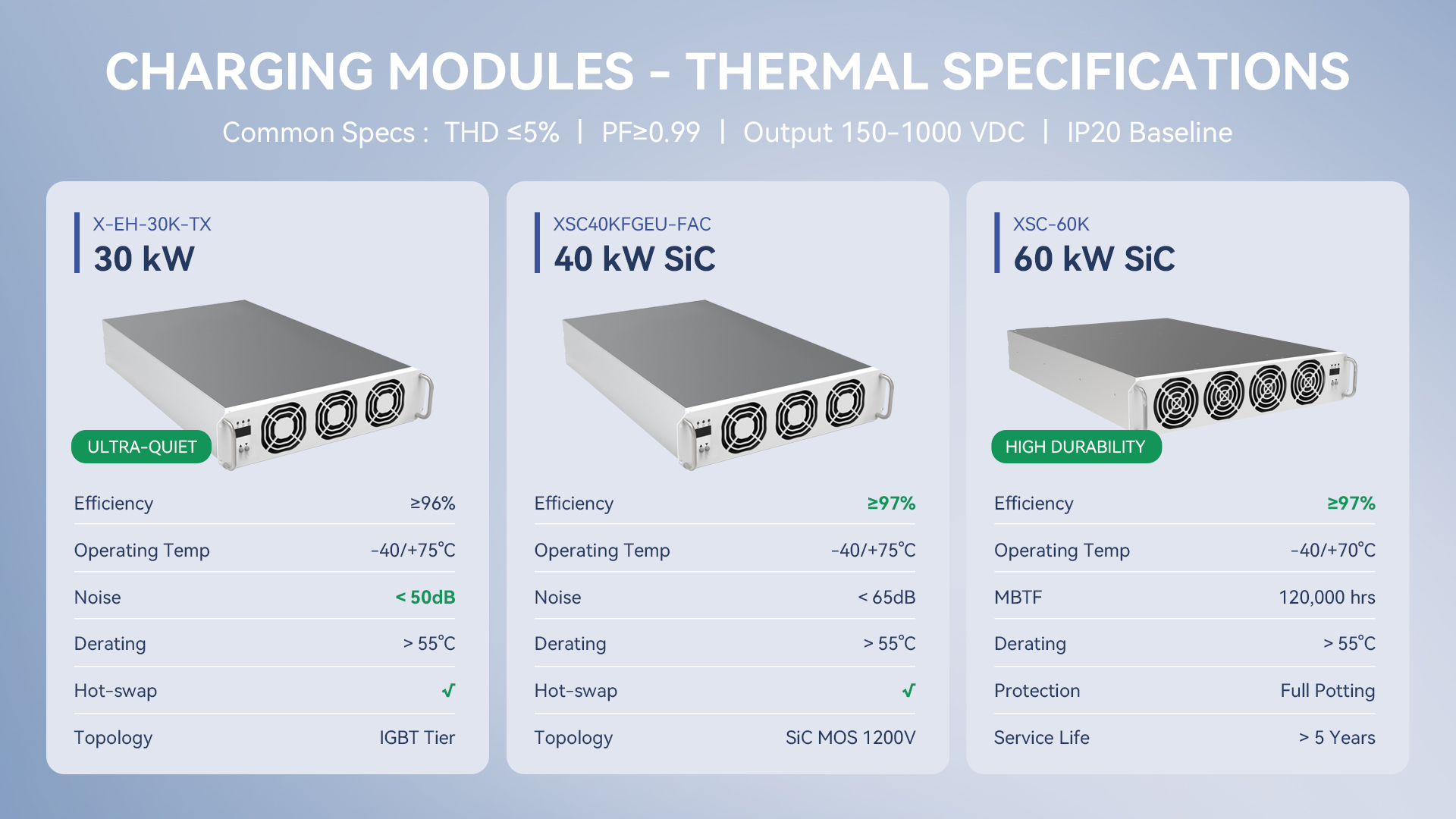

The Module Range: Thermal Specifications at a Glance
| Model | Power | Efficiency | Operating Range | Derating Above | MTBF | Key Technology |
|---|---|---|---|---|---|---|
| X-EH-30K-TX | 30 kW | ≥96% | -40°C to +75°C | 55°C | — | Dual DSP, IGBT, intelligent air cooling |
| XSC40KFGEU-FAC | 40 kW | ≥97% | -40°C to +75°C | 55°C | — | SiC MOS 1200V, dual DSP, fan noise reduction |
| XSC60K series | 60 kW | ≥97% | -40°C to +70°C | 55°C | 120,000 hrs | SiC MOS 1200V + SiC diode, full potting, optimized air duct |
The 30kW and 40kW SiC modules support hot-swap for field maintenance. Please confirm 60kW SiC hot-swap compatibility with Niuera's engineering team.
Conclusion
Thermal management in EV charging modules is not a secondary concern. It is the direct determinant of whether a charging station maintains reliable performance over its intended service life or becomes a maintenance liability as components degrade from repeated thermal stress.
The combination of high-efficiency SiC technology (less heat generated), intelligent variable-speed cooling (effective heat removal), derating function (protection under thermal stress), full potting construction (environmental exclusion), and independent overtemperature protection (last-resort safety) represents a layered approach to thermal management designed for the real-world conditions of commercial charging deployment — including the demanding ambient environments of the emerging markets where charging infrastructure investment is growing fastest.
For charging station operators evaluating module specifications, thermal performance metrics deserve the same scrutiny as efficiency ratings, output voltage range, and certification status. The module that performs at 97% efficiency in a 25°C test environment needs to deliver the same reliability in a 38°C equipment cabinet in Jakarta or a dusty logistics park in Nairobi.
Download Niuera module technical specifications → Request a thermal management consultation for your deployment → Contact our engineering team →
Frequently Asked Questions
Q: What is derating, and how does it affect my station's charging output?
Derating is the automatic reduction of a module's output power when ambient temperature exceeds a specified threshold — 55°C for Niuera's range. Below this threshold, modules deliver full rated output. Above it, power is reduced to keep component temperatures within safe bounds. For the vast majority of deployments in Southeast Asia and East Africa, where ambient temperatures typically stay below 40°C, the derating threshold is rarely reached. For stations in exceptionally hot environments (Middle East, direct sun exposure), ventilation planning should account for potential derating during peak summer conditions.
Q: How does IP rating relate to thermal management?
Commercial DC fast charging station cabinets typically carry IP54 or higher protection ratings (specific requirements vary by market and station manufacturer specification). and the module's own protection rating (IP20 for modules mounted inside the cabinet) serve complementary functions. The cabinet IP rating keeps dust and water away from modules, preventing particulate contamination of cooling airflow paths and moisture ingress onto electrical connections — both of which would increase thermal load over time. The cabinet creates the protected environment that allows the module's IP20-rated cooling system to function as designed.
Q: What does the hot-swap capability mean for thermal management in the field?
Hot-swap allows a faulty module to be removed and replaced while the charging station remains operational — other modules continue serving customers during maintenance. This capability has direct thermal management implications: a station with a failed module running at reduced capacity experiences higher utilization on remaining modules, which increases their thermal load. Hot-swap enables rapid module replacement, restoring normal load distribution and reducing thermal stress on remaining hardware.
Q: How does the MTBF of 120,000 hours translate to real-world service life?
MTBF (Mean Time Between Failures) of 120,000 hours is a statistical reliability metric derived from component stress testing at rated operating conditions. It means that under normal operating conditions, the expected average time between failures is 120,000 hours — approximately 13.7 years of continuous operation, or significantly longer when accounting for typical duty cycles (not 24/7 full load). MTBF degrades when modules are consistently operated above thermal design parameters, which is why maintaining appropriate operating temperatures is directly linked to achieving the reliability the hardware is designed to deliver.
References
[^1]: ChargerHelp. 2025 Annual EV Charging Reliability Report. September 24, 2025. //www.chargerhelp.com/2025-annual-reliability-report/
[^2]: Hengxin Group. Silicon Carbide in Electric Vehicle Charging Stations. October 30, 2025. //www.hxnewmaterial.com/silicon-carbide-in-electric-vehicle-charging-stations/
[^3]: DigiKey / Wolfspeed. Silicon Carbide for Electric Vehicle Fast Charging. //www.digikey.com/en/product-highlight/s/skyworks-solutions/sicarbide-for-ev-fast-charging
[^4]: Navitas Semiconductor. Navitas' Latest SiCPAK™ Power Modules. April 17, 2025. //navitassemi.com/navitas-latest-sicpak-power-modules-set-a-new-standard/
[^5]: J.D. Power. 2025 U.S. Electric Vehicle Experience (EVX) Public Charging Study. February 2026. //evchargingstations.com/chargingnews/j-d-power-ev-chargers-becoming-more-reliable/
[^6]: Niuera Energy. Product specifications: 30kW EV Charging Module, 40kW SiC Charging Module, 60kW SiC Charging Module. //www.niueraenergy.com/en/products.html
All Niuera product specifications sourced directly from niueraenergy.com product pages, verified May 2026. Third-party technical data cited from referenced sources. Nothing in this article constitutes a warranty or guarantee of product performance in specific deployment conditions.
