One DC Bus, Three Energy Sources: Inside an Integrated Solar-Storage-Charging System for E2W/E3W Fleets

In much of Southeast Asia and Sub-Saharan Africa, electricity demand is growing faster than the grid that is supposed to serve it. The International Energy Agency notes that Southeast Asian energy demand has risen by roughly 40 percent since 2015, with electricity demand growing faster still.1 In Africa, the problem is not always the absence of a grid connection but its reliability — operators with grid access still face outages and voltage instability that make charging infrastructure a gamble.2
For an electric two- or three-wheeler fleet, that gamble has a specific shape. A charging station that goes dark for two hours during a delivery shift does not just lose two hours — it can strand riders mid-route, break a swap-cabinet rotation, or force a fleet to idle vehicles it cannot afford to idle. The response many suppliers offer is to bolt a solar panel and a battery onto a standard charger and call it resilient. That is not the same thing as designing a system.
This article looks at what changes when solar, storage and charging are engineered together from a single DC bus, rather than assembled from three separate boxes: why the architecture is built the way it is, what each subsystem actually does, and where the real efficiency and safety gains come from.

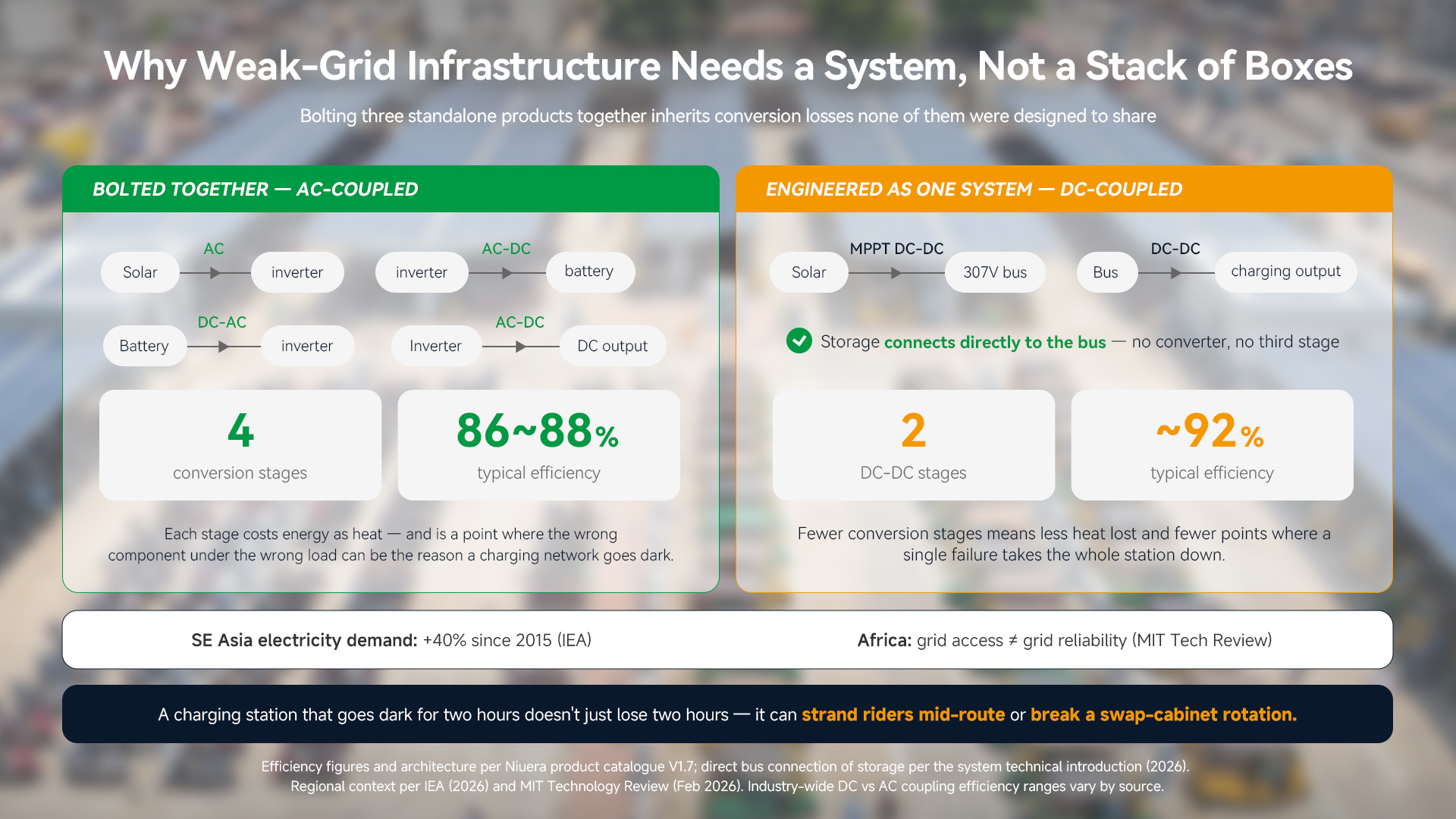

The problem with "charger plus battery plus panel"

Bolt together three products that were each designed to stand alone, and you inherit three separate power-conversion stages: solar to AC, AC to battery, battery to DC output — or some permutation of that chain, depending on which box came from which supplier. Every conversion stage costs energy as heat, and every stage is a point where the wrong component under the wrong load can be the reason the lights go out on a delivery fleet's charging network.
The alternative is to put everything on a shared DC bus and eliminate the stages that do not need to exist. Niuera's integrated solar-storage-charging system for E2W/E3W fleets is built exactly this way: photovoltaic generation, battery storage, optional grid connection and vehicle charging output are unified at the direct-current level, on one 307V-class DC bus, rather than tied together after each has already been converted to AC and back.3
The efficiency consequence is direct. Because energy moves between sources and loads on the same DC bus, the full chain requires only two DC-DC conversion stages, and the system reaches an overall efficiency of approximately 92 percent — against a typical AC-coupled arrangement's four conversion stages and 86–88 percent.3 This is consistent with the direction (if not always the exact figures) reported across the wider solar-plus-storage industry, where DC-coupled architectures are generally documented in the 88–98 percent efficiency range against AC-coupled ranges in the mid-80s to low 90s, precisely because DC coupling removes redundant conversion steps.4

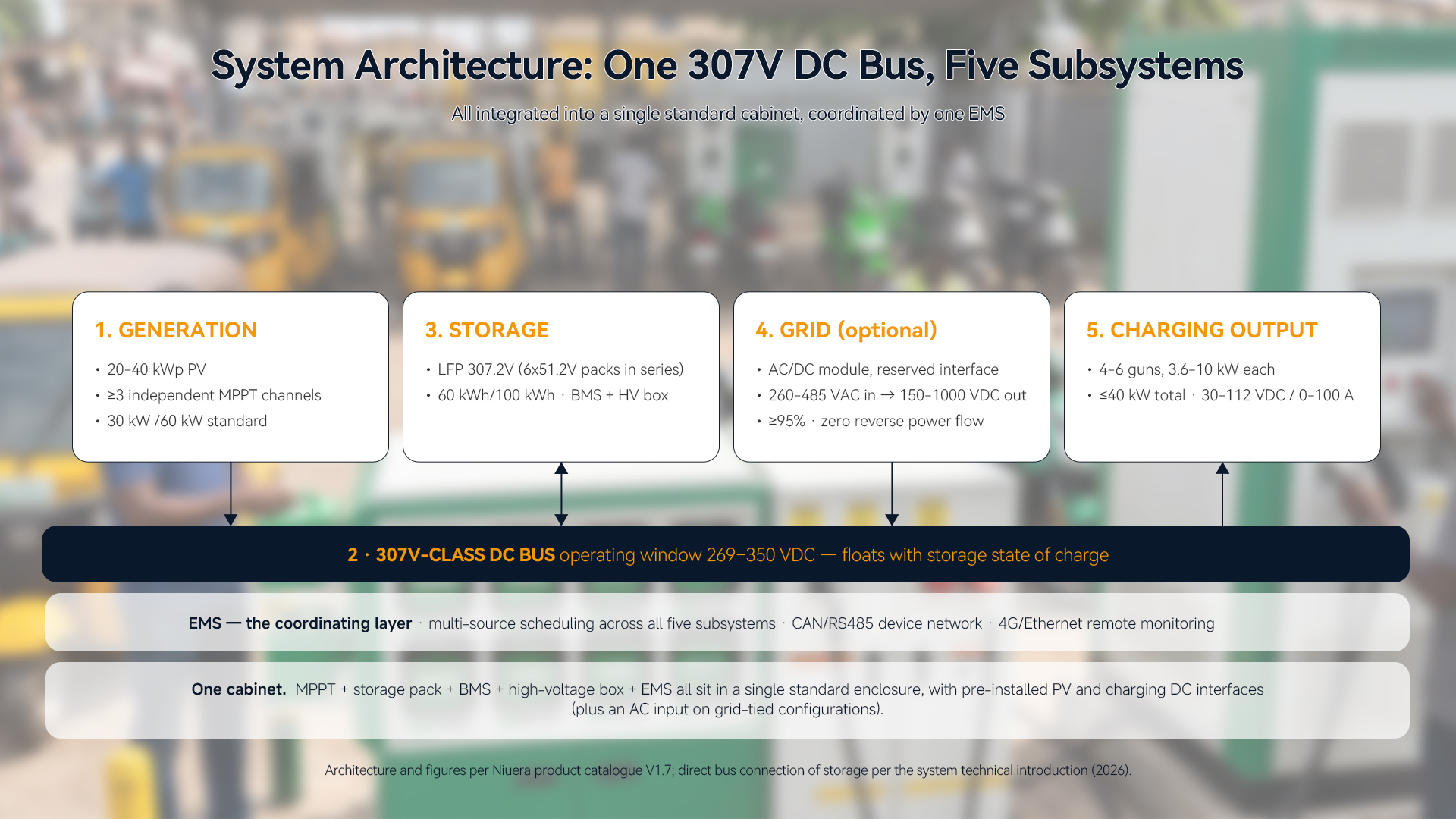

Five subsystems, one cabinet

The architecture has five parts, and Niuera's specification is explicit that they are integrated into a single standard cabinet — MPPT controllers, the battery pack, the BMS, the high-voltage box and the EMS all sit in one enclosure, with pre-installed interfaces for the photovoltaic DC connection and the charging DC connection (and, on grid-tied configurations, an additional AC input).3
1 — Generation side: multi-channel MPPT. A 20–40 kWp photovoltaic array connects through three or more independent MPPT DC-DC channels, in a 30 kW or 60 kW standard configuration; panels are customer-supplied or available as part of a standard package.3 Independent MPPT tracking per channel matters for a reason that is easy to underestimate: with a single combined MPPT controller, a shadow falling across one string of panels drags down the output of the whole array. With independent channels, each string is tracked on its own curve, which removes the need for a separate combiner box and reduces the loss from partial shading.5
2 — The shared DC bus. All energy — solar, storage, grid (where fitted) and the charging output — converges on a single 307V-class DC bus, which operates across a 269–350V window that floats with the state of charge of the storage system.3
3 — Storage: LFP at 307.2V. The battery is a lithium iron phosphate (LFP) system at a nominal 307.2V (six 51.2V packs in series), available in 60 kWh and 100 kWh capacities, using 200 Ah and 314 Ah cells respectively.3 The storage system integrates its own BMS master/slave control and a high-voltage box — pre-charge circuit, main contactor, fusing, a manual service disconnect and insulation monitoring — connected directly to the bus.5 This is the subsystem that stores surplus daylight generation for use overnight and smooths short-term power fluctuations, which is what makes the difference between "charges when the sun is out" and "charges on a schedule."
4 — Optional grid connection. The system is designed to run off-grid, using the storage system as the voltage reference for independent operation. Where a grid connection exists and is worth using, an AC/DC module can be added at a reserved interface: input 260–485 VAC, output 150–1000 VDC, at ≥95 percent efficiency, with zero reverse power flow — the system draws from the grid for initial charging or supplementary power but is designed not to export back onto it.35
5 — Charging output. The system delivers 4 to 6 charging guns, each capable of 3.6–10 kW, for a total station output of up to 40 kW, at an output of 30–112 VDC / 0–100 A, matched to 48–72V lithium battery systems used in electric two- and three-wheelers and light logistics vehicles.3 The gun count and total output are configurable within that range rather than fixed at a single figure — a distinction worth confirming against the current specification for any given deployment, since flexible-gun configurations of this kind are typically documented as a range rather than a single fixed number.

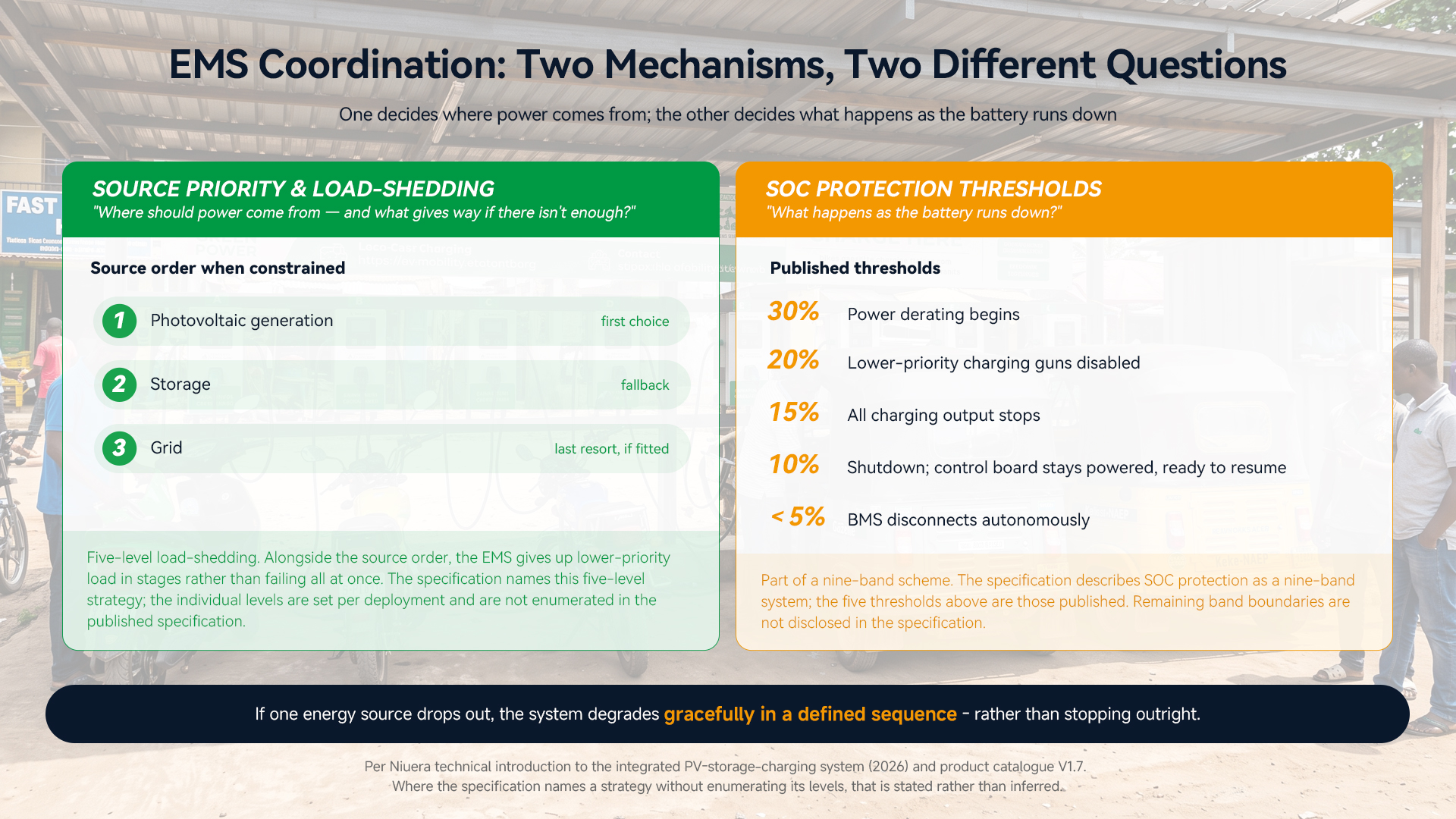

The brain: EMS load-shedding and SOC protection

None of the above works safely without something coordinating it, and that is the job of the Energy Management System (EMS). It handles power scheduling and state-of-charge management across the whole system, communicating over CAN/RS485 for device networking and 4G/Ethernet for remote monitoring, metering and data collection.3
Two mechanisms sit inside the EMS, and they answer two different questions.
Source prioritisation and load-shedding answer "where should power come from right now, and what gives way if there isn't enough." The EMS works down a defined source order — photovoltaic generation first, storage as the fallback, and any available grid connection as a last-resort supplement — combined with a five-level load-shedding strategy that gives up lower-priority load in stages rather than failing all at once.35 The specific shedding levels are set per deployment; the published specification names the strategy without enumerating its levels.
A nine-band SOC protection scheme answers "what happens as the battery runs down." It is the mechanism that keeps a fleet charging through the night without draining the battery to the point of damage. The thresholds published in the specification are:5

State of charge

System response

30%

Power derating begins

20%

Lower-priority charging guns are disabled

15%

All charging output stops

10%

System shuts down but keeps the control board powered, ready to resume

Below 5%

The BMS disconnects autonomously as a final protection measure
Read together, the two mechanisms are the reason the specification calls out multi-source coordination and continuous operation through source interruption as the product's real value: if one energy source drops out, the system is designed to degrade gracefully — shedding load in a defined sequence — rather than to stop outright.5

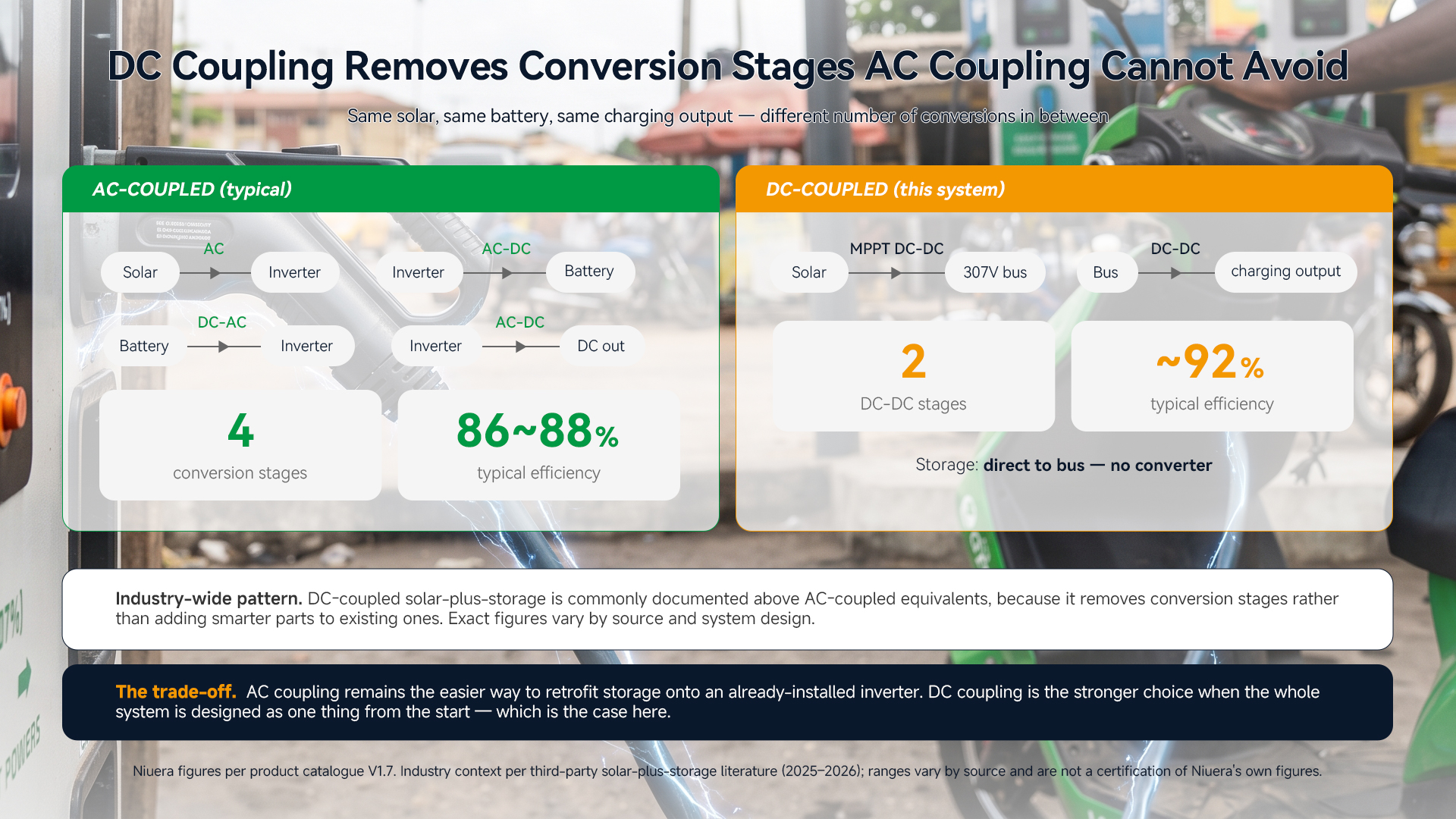

DC coupling versus AC coupling, specifically

It is worth being precise about what "DC-coupled" buys here, because the term gets used loosely across the solar-plus-storage industry.
In an AC-coupled design, solar generation is inverted to AC, then — if it is going into storage — converted back to DC to charge the battery, then inverted to AC again for use, and in a charging application converted back to DC once more for the vehicle. That is as many as four conversion stages, each with its own loss.
In Niuera's DC-coupled architecture there are two: photovoltaic input through the MPPT DC-DC stage onto the bus, and the bus through a DC-DC stage to the charging output.3 The storage system is not a third stage — it connects directly to the bus, which is precisely why the bus operating window floats between 269 and 350 VDC with the battery's state of charge rather than being held at a fixed voltage.5 Energy going into or out of storage crosses no converter at all.
The wider industry literature on solar-plus-storage broadly agrees with the direction of this claim, even where the exact percentages differ by source and by system design: DC-coupled architectures are consistently documented as reaching higher round-trip efficiency than AC-coupled equivalents, precisely because they remove conversion stages rather than add smarter components to existing ones.4 The trade-off, also consistent across that literature, is retrofit flexibility — AC coupling remains the easier way to add storage to an already-installed inverter, which is why it still dominates retrofit projects; DC coupling is the stronger choice when a system is being designed as one thing from the start.4 For a purpose-built charging station rather than a retrofit, that trade-off resolves in DC coupling's favour.

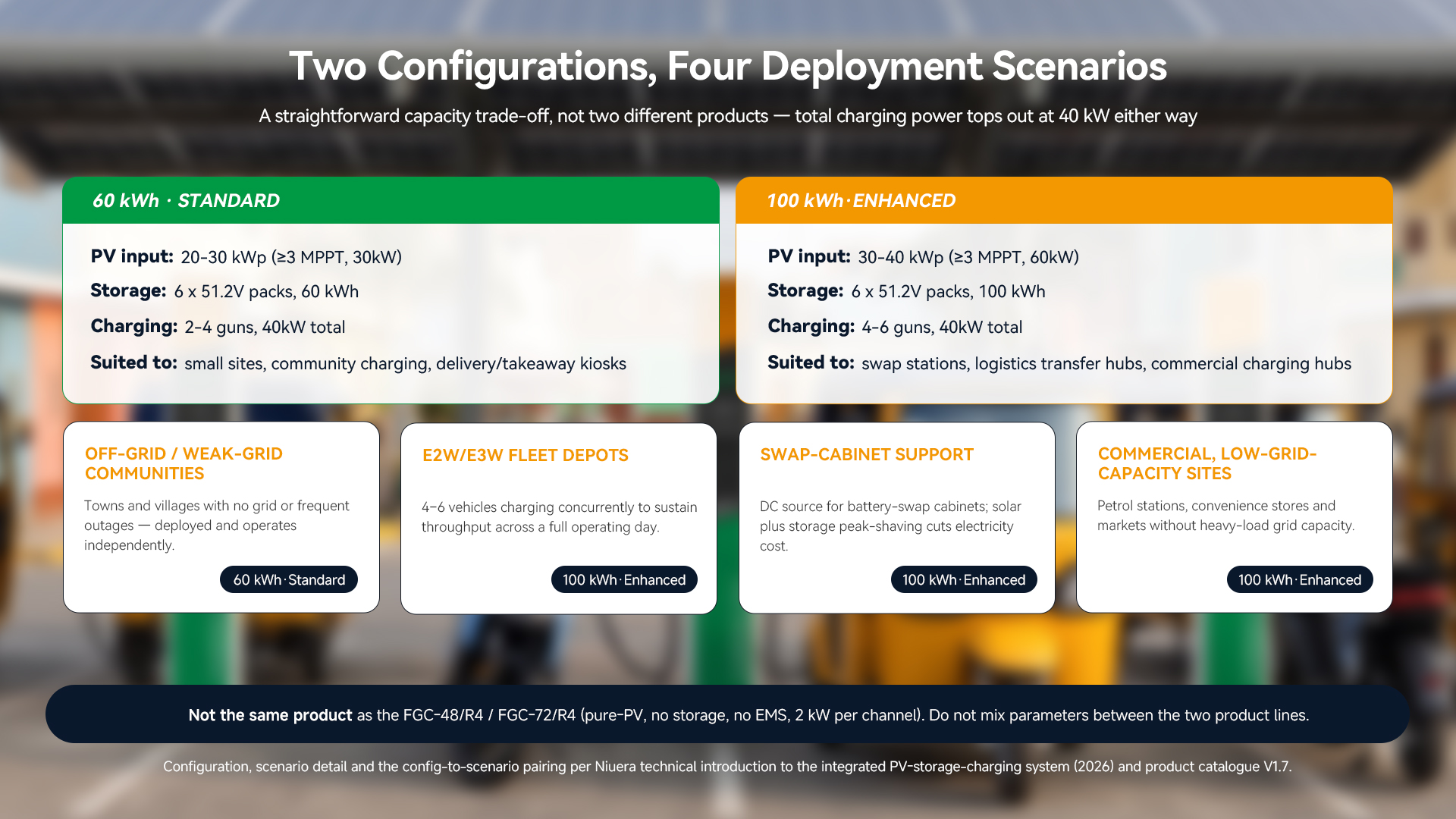

Two configurations, not one fixed product

The system is offered in two standard configurations rather than a single fixed specification, and the difference is a straightforward capacity trade-off:35

60 kWh configuration

100 kWh configuration

Positioning

Standard

Enhanced

Photovoltaic input

20–30 kWp (≥3 MPPT channels, 30 kW)

30–40 kWp (≥3 MPPT channels, 60 kW)

Storage

6×51.2V packs, 60 kWh

6×51.2V packs, 100 kWh

Charging

2–4 guns, 40 kW total

4–6 guns, 40 kW total

Suited to

Small sites, community charging, delivery/takeaway kiosks

Battery-swap stations, logistics transfer hubs, commercial charging hubs
The pattern is consistent with how the rest of this architecture is documented: total charging power tops out at 40 kW in both configurations, and what scales with storage capacity is gun count and daily throughput headroom, not peak output. A small community site does not need six guns; a swap station handling continuous fleet turnover does.

Where this fits, and where it doesn't

This system is designed for electricity-constrained deployment — towns and villages without a stable grid, sites facing frequent outages, or locations where a new grid connection is impractical or too slow to obtain.5 The pattern echoes what regional energy-security research keeps finding: as electricity demand in Southeast Asia has outpaced grid capacity, and as parts of Africa continue to combine limited grid reach with unreliable service where connections do exist, distributed generation paired with storage is increasingly the practical answer rather than a wait for grid buildout.12
Four scenarios recur in the product documentation:5
  • Off-grid or weak-grid communities and markets — towns and villages with no grid or frequent outages, where the system is deployed and operates independently.
  • E2W/E3W fleet depots — delivery, takeaway and passenger fleets charging 4–6 vehicles concurrently to sustain throughput across a full operating day.
  • Emergency and swap-cabinet support — serving as a DC source for battery-swap cabinets, using solar generation and storage peak-shaving to reduce electricity cost.
  • Commercial sites without heavy-load grid capacity — petrol stations, convenience stores and market sites that cannot obtain a high-capacity grid connection but still want fast deployment.
It is worth being equally clear about what this is not. It is not the same product as Niuera's standalone photovoltaic DC charging stations (the FGC-48/R4 and FGC-72/R4) — those are pure-solar units with no storage and no EMS, rated at 2 kW output per channel for basic off-grid charging in the lowest-cost tier.6 The system described here is a 307V-bus integrated station with storage and multi-source coordination, aimed at a different scale of deployment. The two should not be specified interchangeably, and their parameters should not be mixed.

What to ask before specifying one of these

  • What is the actual grid situation at the site — no connection, an unreliable connection, or a connection too slow or expensive to obtain? The off-grid and grid-tied variants of this architecture answer different problems.
  • What is the realistic daily charging demand, in vehicles per day and preferred charging windows? This determines whether the 60 kWh/2–4-gun or 100 kWh/4–6-gun configuration is the right starting point.
  • Is there a battery-swap operation this needs to support, and if so, does the site plan already account for the system serving as a DC source for swap cabinets specifically?
  • What is the site's solar resource — panel area available, shading conditions, and expected generation across wet and dry seasons? Independent multi-channel MPPT reduces shading loss, but it does not eliminate a genuinely poor solar site.
  • Is a grid connection available now, or expected later? The AC/DC module is a reserved-interface addition, which matters for phased deployment where grid access may arrive after initial installation.

The takeaway

The case for building solar, storage and charging as one system rather than three products is not a marketing distinction — it shows up as measurable differences in conversion losses, in what happens when one energy source drops out, and in how a battery is protected across a multi-day duty cycle without a reliable grid behind it. A 307V DC bus, three or more independent MPPT channels, an LFP storage system sized in two standard configurations, and an EMS running five-level load-shedding and nine-level SOC protection are not features bolted onto a charger. They are the reason the charger keeps working somewhere the grid cannot be trusted to.

Specifying a system for your site

Niuera engineers configuration for integrated solar-storage-charging deployments against site-specific solar resource, grid availability and fleet throughput requirements — including standard 60 kWh and 100 kWh configurations, grid-tied AC/DC module addition, and battery-swap-cabinet support.
Send us your site's grid status, solar resource and expected daily charging volume and our engineers will confirm a configuration for your deployment. Reach us at info@niuera.cn or +86 0512-68303879, or visit www.niueraenergy.com.

FAQ

What makes this a "system" rather than a charger with solar and a battery attached?
Photovoltaic generation, battery storage, an optional grid connection and vehicle charging output are unified on a single 307V-class DC bus and coordinated by one Energy Management System, integrated into one standard cabinet. This removes redundant AC/DC conversion stages and allows the system as a whole to shed load in a defined sequence rather than fail outright when one energy source drops out.35
How much more efficient is this than a bolted-together AC-coupled setup?
Niuera's specification states an overall system efficiency of approximately 92 percent for the DC-coupled architecture, against roughly 86–88 percent for a typical AC-coupled arrangement, because the full chain requires only two DC-DC conversion stages rather than the additional AC conversion and reconversion stages an AC-coupled design requires.3
Can this run completely off-grid?
Yes. The system uses the storage system as its voltage reference for independent, off-grid operation. A grid connection is optional: where one is available and useful, an AC/DC module can be added at a reserved interface, with zero reverse power flow onto the grid.35
What happens if the battery runs low overnight?
A nine-level state-of-charge protection scheme governs the response: power derating begins at 30% SOC, lower-priority charging guns are disabled at 20%, all charging stops at 15%, the system shuts down but keeps its control board powered at 10%, and the BMS disconnects autonomously below 5%.5
How many vehicles can this charge at once?
4 to 6 charging guns, each rated 3.6–10 kW, for a total station output of up to 40 kW — the gun count depends on the configuration (2–4 guns on the 60 kWh configuration, 4–6 guns on the 100 kWh configuration).35
Is this the same as Niuera's solar DC charging stations (FGC series)?
No. The FGC-48/R4 and FGC-72/R4 are standalone pure-photovoltaic charging units with no storage and no EMS, rated at 2 kW output per channel. The system described here is a 307V-bus integrated station with LFP storage and multi-source EMS coordination, built for a different scale and type of deployment. Parameters between the two product lines should not be mixed.6
Is there an engineering model number for this system?
Not yet assigned at the time of writing. Please contact Niuera for current model and ordering information for your configuration.

References

  1. International Energy Agency — How accelerating electrification could strengthen energy security in Southeast Asia (2026).
  2. MIT Technology Review — Why EVs are gaining ground in Africa (February 2026).
  3. Suzhou Niuera Energy Co., Ltd. — electric motorcycle / light electric vehicle product catalogue, V1.7 (2026), integrated solar-storage-charging system specification.
  4. Industry sources on DC-coupled versus AC-coupled solar-plus-storage architecture (2025–2026), summarising commonly reported efficiency ranges for each coupling method.
  5. Suzhou Niuera Energy Co., Ltd. — technical introduction to the integrated PV-storage-charging system for electric two- and three-wheelers (2026).
  6. Suzhou Niuera Energy Co., Ltd. — FGC-48/R4 and FGC-72/R4 photovoltaic DC charging station specifications, product catalogue V1.7 (2026).
Product specifications cited above are drawn from Niuera product catalogue V1.7 and related technical documentation current at the time of writing, and are subject to change. Please confirm current specifications and model availability with Niuera for any specific project. Third-party industry figures on coupling efficiency vary by source and system design and are cited to indicate general direction, not to certify Niuera's own reported figures.
